  • Product No.: ENH-SB01170A-01

Details

Description:

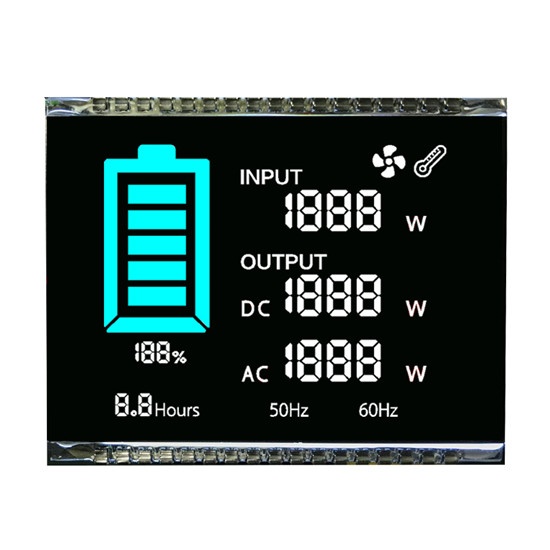

This is the segment lcd, custom size, which this one is 87.50x56.0mm, and viewing area is 51.0x41.0mm,TN material, HT1621 IC,the working voltage is 3.0V, 12 O'clock viewing angle.

Parameters:


1.Product name :

ENH-SB01170A-01

2.LCD size:

87.50Xx56.0mm

3.Viewing area:

51.0x41.0mm

4.Drive method:

1/4 duty,1/3 bias

5.Resolution:

7 digit Segment LCD

6.Display color :

White

7.Viewing angle:

12 Oclock

8.Display mode:

TN/Positive/Transflective

9.Operating temperature:

-10 to +60

10.Storage temperature:

-20 to +70

11.Connector:

COB

12.Drive IC :

HT1621

13.Backlight :

White

14.Working voltage:

3.0V

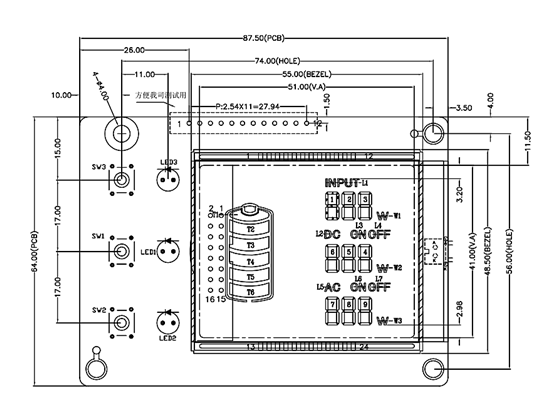

LCD Drawing:



If you are interested in this LCD, just feel free to send email to cassie@rxxdisplay.com
