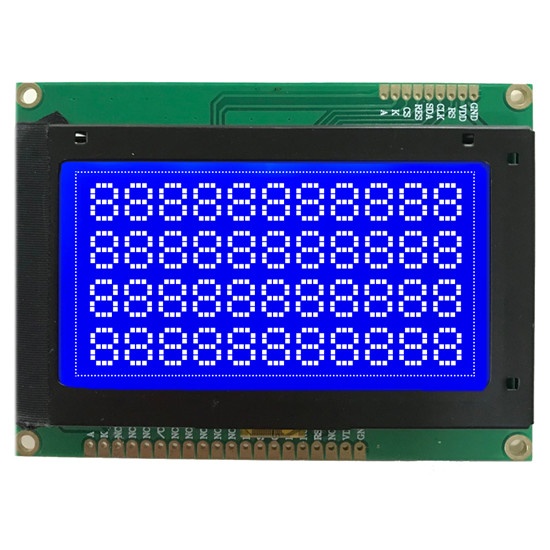

Custom Made 128x64 COB LCD Module Chip On Board
Description:
This is the 128x64 COB module, chip on board LCD.Which the dimension size is 93.0x70.0mm, viewing area is 72.0x39.0mm,with IST3004 driver.
Parameters:
LCD Drawing:
If you are interested in this LCD, just feel free to send email to cassie@rxxdisplay.com
This is the 128x64 COB module, chip on board LCD.Which the dimension size is 93.0x70.0mm, viewing area is 72.0x39.0mm,with IST3004 driver.
Parameters:
|
1.Product name : |
ENH-DG128064-59 |
|
2.LCD size: |
93.0x70.0mm |
|
3.Viewing area: |
72.0x39.0mm |
|
4.Drive method: |
1/65 duty,1/9 bias |
|
5.Resolution: |
128x64 |
|
6.Display color : |
Blue |
|
7.Viewing angle: |
12 O’clock |
|
8.Display mode: |
STN/Negative/Transmissive |
|
9.Operating temperature: |
-20℃ to +70℃ |
|
10.Storage temperature: |
-30℃ to +80℃ |
|
11.Connector: |
PIN |
|
12.Drive IC : |
IST3004 |
|
13.Backlight : |
White |
|
14.Working voltage: |
3.3V |

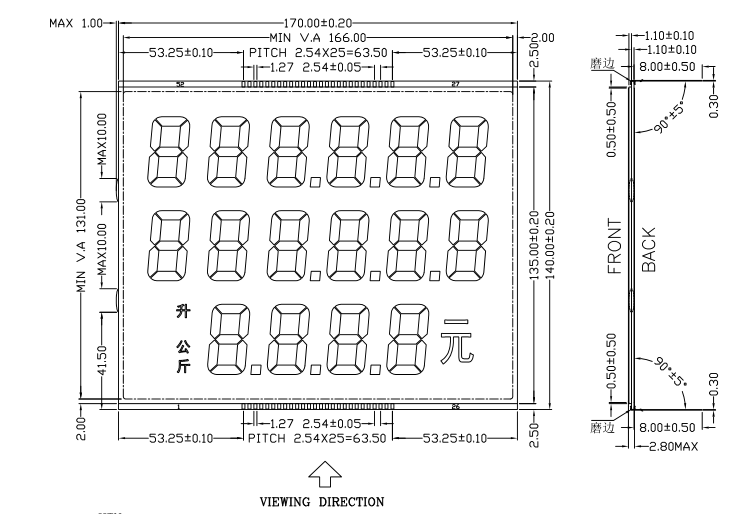

LCD Drawing:
If you are interested in this LCD, just feel free to send email to cassie@rxxdisplay.com
