  • Product No.: ENH-TV100A1301

Details

Description:

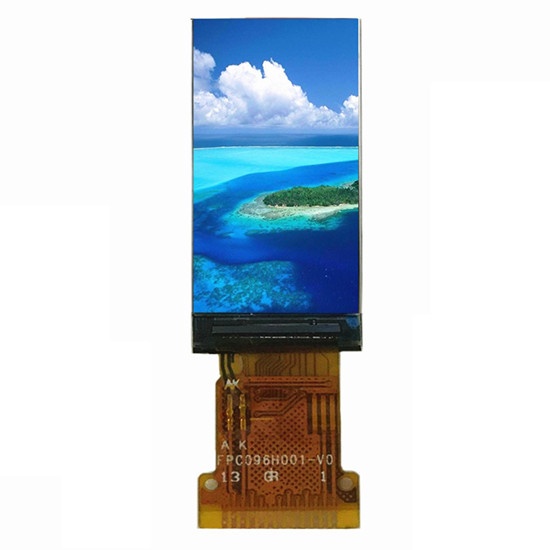

This is the 1.0 inch TFT graphic LCD with 160x80 pixels, which the dimension size is 15.70x30.90mm, and AA area is 12.0x23.40mm, serial interface with ST7735S controller.

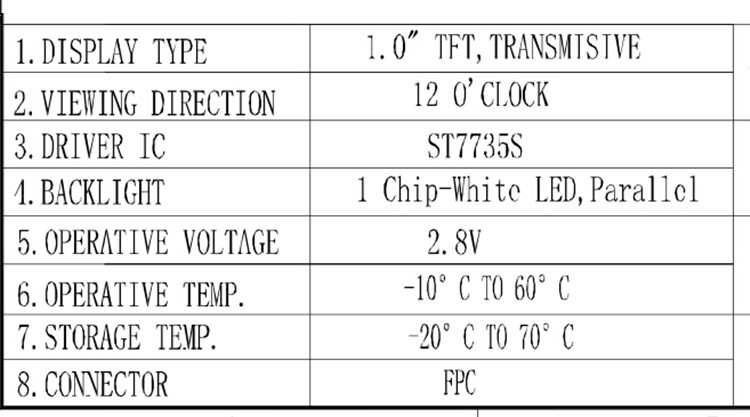

Parameters:



1.Product name : ENH-TV100A1301
2.Size: 15.70x30.90mm
3.Viewing area : 15x30mm
4.Active area : 23.40x12.0mm
5.Resolution: 160x80
6.Display type : Transmissive
7.Viewing angle: 12 O'clock
8.Drive method : Serial Interface
9.Working temp : -10℃~+60℃
10.Storage temp : -20℃~+70℃
11.Connector: COG+FPC
12.Drive IC :  ST7735S
13.Backlight : White led backlight

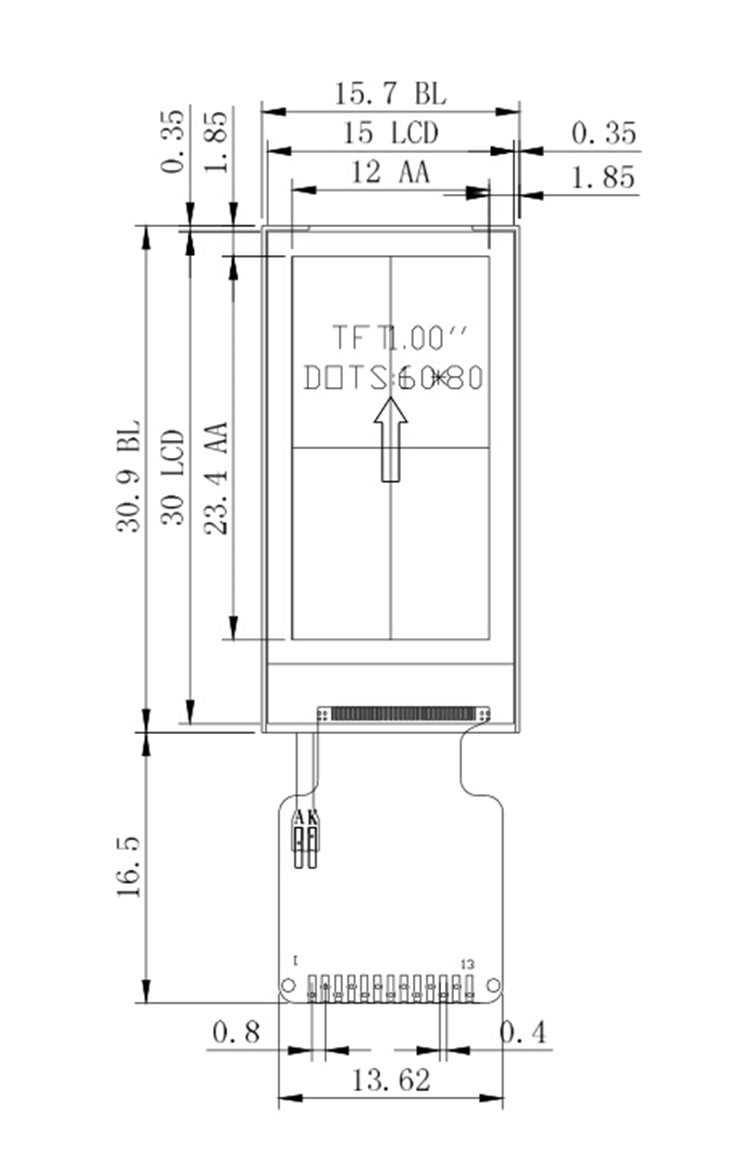

Display Drawing:
